Here is how to test an alternator: measure battery voltage with a multimeter: about 12.6 V with the engine off, then roughly 13.7-14.7 V with the engine running and loads on. If the running reading stays near the resting voltage or falls as you add load, check the belt, cables and grounds before replacing the alternator.
Quick answer: inspect the belt and connections, check resting voltage, check running voltage with the headlights and blower on, then do voltage-drop and AC-ripple tests if charging is low or unstable.
Safety: keep hands, clothing and test leads away from the belt, pulleys and fan while the engine runs. Never disconnect a battery cable as a test with the engine running.

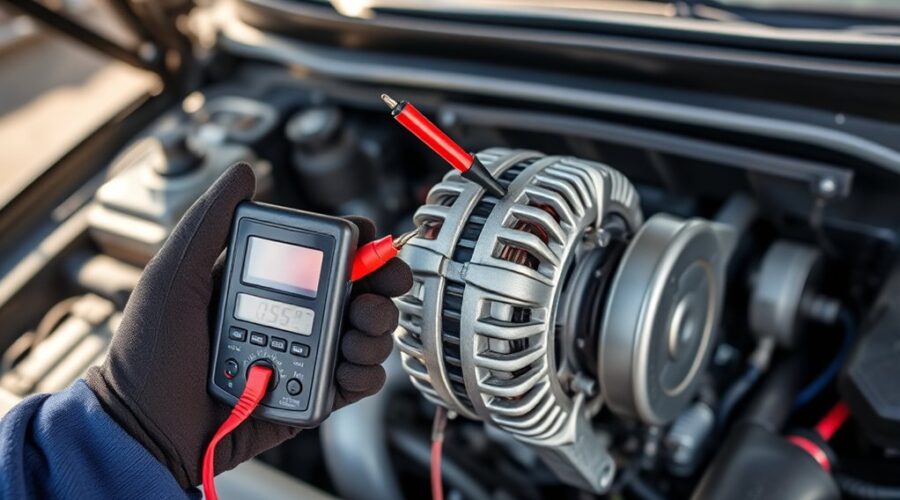

How to Test an Alternator With a Multimeter
- Inspect first (engine off). Check the drive belt, battery terminals, alternator connections and ground cables for looseness, corrosion or damage.
- Set the meter to DC volts and measure across the battery posts with the engine off. A healthy, fully charged 12 V lead-acid battery rests at about 12.6 V.
- Start the engine and measure again. On a conventional system the reading should rise above the resting voltage.
- Add load. Switch on the headlights and blower. If the service procedure calls for it, hold about 2,000 rpm and watch whether the voltage stays in range.
- If battery voltage is low but voltage at the alternator output is normal, test the positive cable and ground path for voltage drop.
What Voltage Should an Alternator Read?
| Condition | Typical reading |
|---|---|
| Engine off, fully charged battery | About 12.6 V |
| Conventional system, engine running | About 13.7-14.7 V (Fluke) |
| DENSO loaded test near 2,000 rpm | About 13-15 V, per vehicle specification |
| Smart-charging system | May rise and fall on purpose; use the manufacturer’s test procedure |
Many modern vehicles use intelligent charging that changes alternator output with battery condition and load, as HELLA explains. A single voltage number is therefore not a pass or fail rule for every car.
How to Test Charging Voltage Drop
A voltage-drop test shows whether output is lost in the cables before it reaches the battery. Run the engine with electrical loads on, then measure with the meter on DC volts.
- Positive side: alternator B+ terminal to battery positive post.
- Negative side: alternator case (clean bare metal) to battery negative post.
- Limits: Delco Remy gives 0.5 V maximum total loss on a 12 V system under rated load. DENSO uses no more than 0.2 V per side.
- If a side reads high, move the probes along that cable to find the bad joint, ground strap or corroded terminal.
Check the Belt and Output Leads
A slipping or worn belt cuts charging even when the alternator is fine. Look for cracks, fraying, glazing and contamination, and check pulley alignment. Many modern cars use an automatic tensioner, while older systems need the specified deflection, so follow the service manual instead of over-tightening. Also inspect the output lead for damaged insulation and loose or corroded terminals.
AC Ripple Test for Failing Diodes
A normal DC reading can miss a failed rectifier diode. Set the meter to AC volts, connect across the battery with the engine running and loads on, and read the result. Fluke describes 50 mV AC or less as desirable, about 0.05-0.10 V as worth watching, and 0.3-0.5 V or more as a likely diode or stator problem. Check connections and grounds before condemning the alternator.
Older Lucas ACR alternators have their own terminal layout and procedure, so use the Lucas or vehicle service manual for those.
What to Do If Charging Voltage Is Low
- Replace a damaged or contaminated belt, then retest.
- Clean and tighten battery terminals and ground straps.
- Repair any cable or connection that fails the voltage-drop test.
- If the connections are good and output is still low or ripple is high, replace or rebuild the alternator. DENSO’s removal guide covers the general procedure.
- Test the battery too. A weak battery can mimic or cause charging problems; our best car batteries guide helps if you need a new one, and a good automotive multimeter makes these tests easier.
If the battery has to come out for the repair, see how to remove a car battery. For basic meter use, see Fluke’s guide on testing a battery with a multimeter.
Frequently Asked Questions
What should an alternator read with the engine running?
A conventional 12 V system commonly reads about 13.7-14.7 V across the battery posts with the engine running. A fully charged battery rests at about 12.6 V, so the running reading should be clearly higher. Smart-charging systems can vary, so use the manufacturer’s specification.
Can I test an alternator without a multimeter?
Warning signs such as a battery light, dim headlights or a battery that keeps going flat suggest a charging problem, but only a voltage test can confirm it. Many parts stores offer battery and alternator tests, so ask before you buy a part.
Is it the battery or the alternator?
If the car starts after a jump but dies soon after, or the running voltage stays near 12 V, the alternator or its wiring is the likely cause. If the running voltage is normal but the car will not start after sitting, suspect the battery.
Is it safe to disconnect the battery to test the alternator?
No. Do not disconnect a battery cable with the engine running. Voltage spikes can damage the vehicle’s electronics, and it is not a valid test on modern cars.
What does a voltage drop test tell me?
It shows how much charging voltage is lost in cables and connections before it reaches the battery. Delco Remy gives a maximum total loss of 0.5 V on a 12 V system under rated load; DENSO uses no more than 0.2 V on each of the positive and negative sides.
What does AC ripple tell me?
Excess AC voltage on the battery points to a failing diode in the alternator’s rectifier or a stator fault. Fluke describes about 50 mV AC or less under load as desirable, with 0.3-0.5 V or more commonly indicating a fault.
